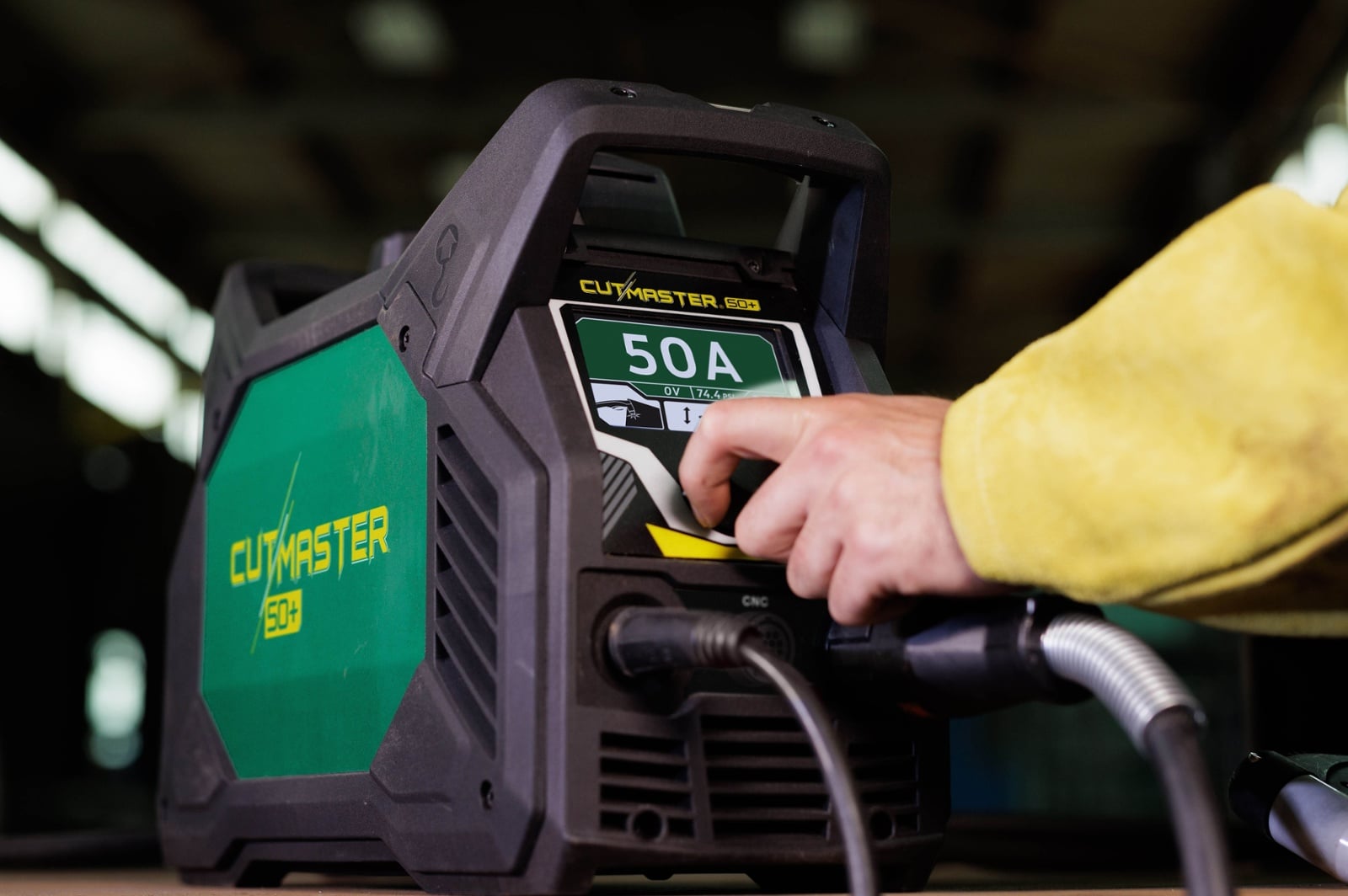

How Does a Plasma Cutter Work?

A Thermal Dynamics Cutmaster doesn’t just cut—it performs a finely tuned process where power, air, and precision parts work together seamlessly. Understanding how this process works will help you maximize cut quality, reduce cleanup, and achieve consistent results on steel, stainless, and aluminum.

New to plasma cutting? Start with What Is Plasma Cutting? for foundational concepts, then return here for deeper technical insights.

The Basic Principle

Electricity + gas + constriction = plasma arc. That’s the formula behind every plasma cutter. Here’s how it works:

• The cutter’s power supply sends DC current to an electrode inside the torch.
• Compressed gas (shop air or specialty gas) is forced through a narrow nozzle.
• When the arc makes contact with the grounded workpiece, the gas ionizes and becomes plasma—a superheated jet of conductive energy capable of melting and ejecting metal.

The Cutmaster 70+ at 70 A delivers enough energy for repeatable 3/4” cuts. The portable Cutmaster 30+ applies the same physics on thinner materials—making it a go-to for field service and light fabrication.

Step-by-Step Cutting Process

Step 1: Gas Flow

Before the torch is ignited, compressed gas begins flowing through the torch body. This is more than just a pre-flow—it serves two purposes:

• It pressurizes the system so gas is stable at the nozzle the instant the arc starts.
• It cools the consumables (especially the nozzle and electrode) to prevent premature wear.

Shops typically use clean, dry air for most materials. For specialty applications, gases such as nitrogen or oxygen may be used. If the air supply contains moisture or oil, arc stability suffers and consumables fail more quickly.

Step 2: Pilot Arc

Once gas is flowing, the system creates a pilot arc between the electrode and nozzle inside the torch.

• This is a low-energy arc that doesn’t yet cut the workpiece but prepares the gas stream.
• It ionizes the gas, converting it into a conductive plasma channel.
• Pilot arc also ensures reliable starts even if the metal surface is painted, rusty, or slightly dirty.

Pilot arc is one of the biggest advantages of plasma cutting compared to mechanical processes—it enables clean starts without physically contacting the metal surface.

Step 3: Arc Transfer

As the operator lowers the torch toward the workpiece, the pilot arc seeks the path of least resistance. When the torch tip is close enough, the arc jumps from the nozzle to the grounded workpiece. This transition is called arc transfer.

• The torch’s power supply senses the conductive path and instantly ramps up to full cutting current.
• From this point forward, the arc is maintained directly between the electrode and the metal being cut.

This moment is critical—if the ground clamp is poor or the standoff distance is wrong, the arc may fail to transfer properly. That’s why a stable work clamp and correct technique are essential.

Step 4: Cutting Action

Once transferred, the plasma arc becomes a high-energy jet, reaching temperatures of 20,000°C (36,000°F) or more. The focused stream does two things at once:

1. Melts the metal along the cut path.
2. Blows molten metal out of the kerf with high-velocity gas.

Cut quality at this stage is controlled by several variables:

• Travel speed: Too fast = incomplete penetration; too slow = excessive dross buildup.
• Standoff distance: Holding too high widens the kerf, while dragging the tip can damage consumables.
• Amperage setting: Higher amps cut thicker material but must be matched to nozzle size and duty cycle.

When dialed in correctly, the result is a narrow kerf, square edges, and minimal cleanup.

Pro Tips for Consistent Cuts

• Heavy slag on the bottom edge usually means travel speed is too slow or consumables are past their prime.
• A sputtering or unstable arc often indicates poor grounding, clogged filters, or fluctuating gas pressure.
• Always practice on scrap of the same thickness before starting production—this ensures settings and technique are optimized.

Torch Consumables Explained

Your torch consumables do the heavy lifting in shaping and focusing the arc. Understanding each part helps extend lifespan and improve cut quality:

• Electrode: Carries current and anchors the arc; wears with use.
• Nozzle: Constricts and directs the arc; erosion widens the kerf.
• Swirl Ring: Spins the gas for stability and cooling.
• Shield Cap: Protects the nozzle and maintains standoff distance.

Inspect consumables often. Replace at the first signs of pitting, ovaling, or overheating—small investments prevent hours of rework.

What Does “Weld” Mean Here?

Plasma cutters don’t fuse metal. Instead, they prepare material for welding by producing square, clean edges with a minimal heat-affected zone (HAZ). That’s why plasma cutting is a staple in fabrication workflows—parts are cut fast, then welded with minimal cleanup.

Gas Pressure & Torch Settings

Gas pressure is critical to arc stability. Too low and the arc sputters. Too high and you waste gas while damaging consumables.

• Cutmaster 30+: ~70–75 PSI (4.8–5.2 bar)
• Cutmaster 70+: ~75–80 PSI (5.2–5.5 bar)

Always follow your exact manual values—these vary by material and thickness. For details on nonferrous metals, see Plasma Cutting Aluminum & Steel.

Don’t forget: Maintain a good ground clamp, service filters and dryers, and ensure your compressor provides enough CFM to keep pressure steady on long cuts.

Common Mistakes & Fixes

• Slow travel speed: Heavy dross buildup — increase speed or amperage.
• Worn consumables: Ragged edges — replace nozzle or electrode sooner.
• Low/fluctuating gas pressure: Porous cuts — check compressor CFM, filters, leaks.
• Poor grounding: Arc sputter — clean clamp and shorten return path.
