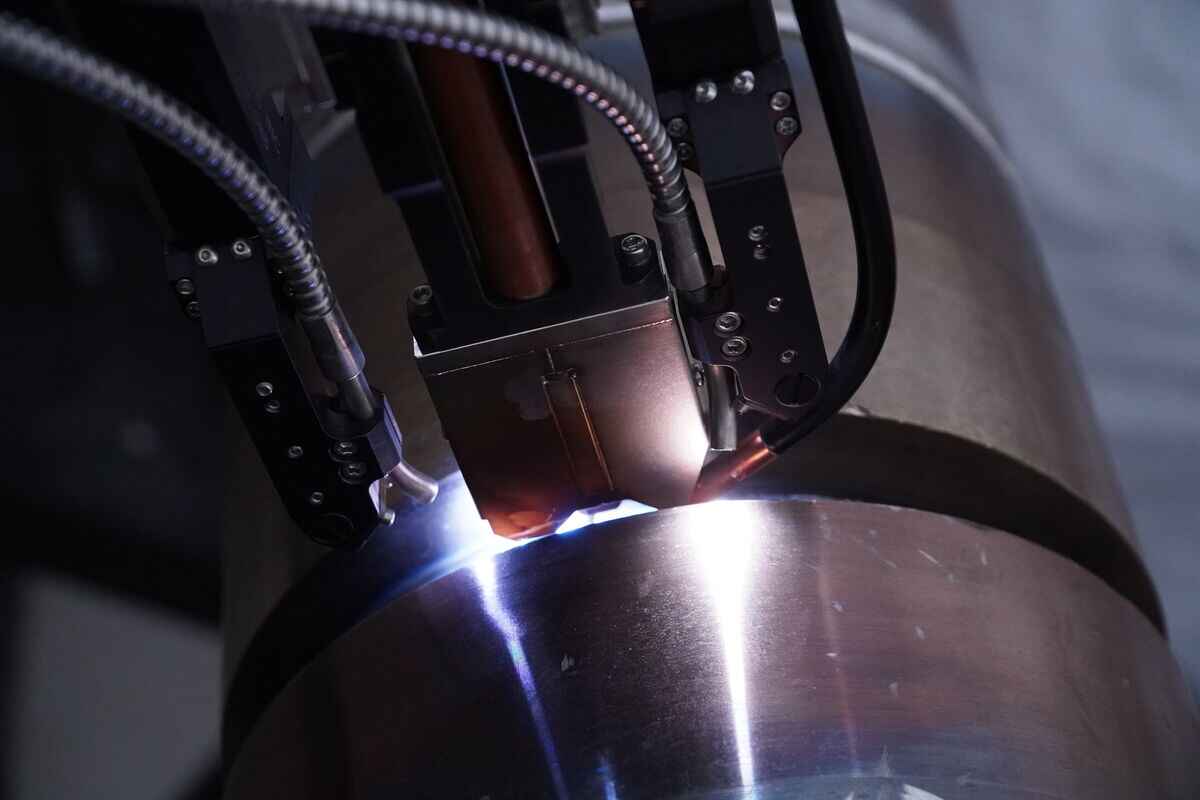

What Is Orbital Welding?

Definition and Core Principles

Orbital welding is a specialized form of GTAW/TIG in which the electrode and arc orbit around a fixed workpiece, typically tubing or piping with diameters ranging from 1.6 mm (1/16 in.) to 152 mm (6 in.) and beyond. The process is most often used with stainless steels, titanium, nickel alloys, and other high-performance metals where contamination or inconsistencies could compromise system performance.

The orbital welding system generally consists of:

  • Weld heads (open or closed, depending on pipe accessibility and shielding gas requirements)
  • Power supply units that regulate current, voltage, arc length, and pulse parameters
  • Controller systems for programmability and repeatability
  • Shielding gas systems (argon, helium, or mixtures) to maintain weld purity

Historical Origins

Orbital GTAW (Gas Tungsten Arc Welding) traces its origins to the North American X-15 hypersonic flight program of the 1960s. Traditional welding methods at the time could not prevent leaks in hydraulic and fuel lines that were subjected to extreme pressures and temperatures. To solve this challenge, engineer Rod Rohrberg at North American Aviation pioneered orbital GTAW. By automatically rotating the electrode around stationary tubing, he was able to achieve high-purity, leak-free welds.

This breakthrough technology enabled the X-15 to successfully complete nearly 200 missions—13 of which reached spaceflight altitude—and laid the foundation for orbital welding’s role in aerospace, defense, and other high-spec industries.

x-15-flight-nasa-1958

x-15-flight-nasa-1958-american-aviation

Top: During its October 1958 rollout ceremony at the North American Aviation (NAA) facility in Los Angeles, NAA pilot A. Scott Crossfield poses in front of the X-15-1. Bottom: Rollout of X-15-2 at the NAA facility in February 1959.

Today, orbital welding has become synonymous with precision and compliance, producing welds that meet or exceed the strict requirements of organizations such as ASME, AWS, ISO, and FDA. Its impact now extends far beyond aerospace into industries such as semiconductor, nuclear, shipbuilding, and pharmaceutical manufacturing. For a full overview of the process, materials, and applications, see The Complete Guide to Orbital Welding.

The History of Arc Machines, Inc. (AMI)

Founded in 1976 by Mindy Gedgaudas and Lou Reivydas, and later joined by Vic Fukumoto, Arc Machines, Inc. (AMI) quickly established itself as a pioneer in orbital welding innovation. In its very first year, AMI delivered a weld head and reverse polarity power source for aluminum welding under contract with Oak Ridge National Laboratories. By 1977, AMI had already introduced the Model 6 tube-to-tubesheet weld head for Struther-Wells, followed by the Model 7 Nuclear Waste Can Lid Welder in 1978—an early demonstration of AMI’s ability to engineer robust, remotely operated systems for hazardous environments.

Over the following decades, AMI became the benchmark in orbital welding equipment, driving advancements across high-spec industries:

  • 1979 – Introduced the Model 9 and Model 107 in-place orbital fusion tube welding systems, setting a new industry standard.
  • 1996 – Provided orbital welding solutions for Cessna’s Citation X business jet, enabling titanium fuel and hydraulic line construction with reduced weight.
  • 1998 – Supplied seven DC GTAW weld heads to Lockheed Martin for the space shuttle program, critical in repairing welds on the super-lightweight external fuel tank.
  • 1999–2019 – Orbital GTAW power supplies from AMI were instrumental in fabricating titanium tube components for the China-Brazil Earth Resource Satellite program, supporting decades of successful launches.
  • 2006 – AMI orbital weld heads and power supplies played a central role in the construction of the first four ships in the U.S. Navy’s San Antonio-class amphibious transport dock, underscoring AMI’s importance in naval defense applications.

From its early nuclear industry solutions to its aerospace and defense contributions, AMI has continually set the standard for orbital welding technology worldwide. Its systems remain synonymous with precision, repeatability, and high-purity welds, making them indispensable for industries where failure is not an option.

Materials and Metallurgy in Orbital Welding

Welding Stainless Steels: The Case of 316L

316L stainless steel is one of the most widely used materials in orbital welding due to its balance of corrosion resistance, strength, and weldability. With a carbon content below 0.03%, 316L minimizes carbide precipitation during high-temperature exposure, reducing the risk of intergranular corrosion.

Key mechanical properties of 316L stainless steel include:

  • Tensile strength: ~74,700 psi
  • Yield strength: ~29,700 psi
  • Elongation: ~60% at break
  • Melting range: 2510–2550 °F
  • Modulus of elasticity: 28,000 ksi

These properties make it ideal for aerospace hydraulic systems, pharmaceutical tubing, offshore oil platforms, and food-grade piping.

Metallurgical Considerations

  • Delta Ferrite Formation: During solidification, delta ferrite phases can reduce hot cracking but may act as initiation sites for pitting corrosion. Orbital processes control heat input to minimize this risk.
  • Sensitization: Occurs when chromium carbides form at grain boundaries, depleting corrosion resistance. Orbital welding reduces time in the sensitization temperature range (800–1400 °F).
  • Filler Metal Selection: Using ER316L or molybdenum-enhanced fillers provides resistance to hydrogen-induced cracking and chloride attack.
  • Shielding Gas: High-purity argon (>99.995%) is commonly used; helium mixtures may be introduced to increase heat input for thicker sections.

Other Alloys in Orbital Welding

  • Titanium (Grade 2 & 5): Requires ultra-high purity argon shielding (<50 ppm oxygen).
  • Nickel Alloys (Inconel, Monel): High resistance to corrosion, but prone to porosity if shielding is inadequate.
  • Carbon Steels: Less common in orbital TIG due to oxidation and spatter, but still applicable with proper control.

When comparing torch components, welders often ask how orbital heads differ from standard GTAW setups. Learn more in GTAW Torch Parts: How Orbital Weld Heads Compare.

Orbital Welding Defects and Preventive Strategies

Common Defects

  • Undercut: Grooving at weld toes due to excess heat input or improper electrode angle.
  • Lack of Fusion: Occurs when energy input is insufficient to fully melt base and filler metals.
  • Porosity: Caused by contamination, moisture, or insufficient shielding gas coverage.
  • Oxidation (“Sugaring”): A surface oxide layer forming on stainless steels if gas shielding fails.

How Orbital Welding Minimizes Defects

  • Programmable Heat Control: Closed-loop systems regulate amperage and pulse width, maintaining constant penetration.
  • Electrode Positioning: Automated arc travel eliminates inconsistent angles, a frequent cause of undercut and incomplete fusion.
  • Gas Coverage: Closed weld heads provide 100% inert gas coverage, preventing atmospheric contamination.
  • Monitoring & Feedback: Integrated sensors track arc voltage, travel speed, and gas flow in real time, enabling corrective action during welding.

The result is a weld profile that is uniform, repeatable, and defect-free, reducing rework and ensuring compliance with critical standards. Many of these issues can be traced back to incorrect setup or misapplied parameters. For practical advice, see our resource on Troubleshooting a TIG Welder Used in Orbital Welding.

Orbital Welding in Critical Industries

Food & Beverage

Hygienic welds are essential for compliance with the Food Safety Modernization Act (FSMA) and 3-A Sanitary Standards. Orbital welding provides:

  • Crevice-free weld beads that prevent bacterial harborage
  • Surface roughness (Ra) values meeting sanitary requirements
  • Burr-free joints suitable for CIP/SIP cleaning systems

Pharmaceuticals & Biopharma

Orbital welding ensures bioprocessing equipment meets ASME BPE (BioProcessing Equipment) standards, with features such as:

  • Welds free of inclusions and contamination
  • High corrosion resistance against cleaning agents
  • Verification through orbital weld inspection (boroscopes, X-ray)

Aerospace & Defense

Applications include jet engine tubing, hydraulic systems, and rocket fuel lines. Orbital welding provides:

  • Leak-free welds under cyclic fatigue conditions
  • Resistance to stress corrosion cracking in chloride environments
  • Conformance with NADCAP and AWS D17.1 standards

Oil, Gas & Energy

Pipelines and pressure vessels demand welds resistant to hydrogen embrittlement and sulfide stress cracking. Orbital welding delivers:

  • Consistent penetration in heavy-wall pipes
  • Reduced repair costs in offshore and subsea installations
  • Reliability in sour service environments

Semiconductors & Electronics

Semiconductor fabs require ultra-high-purity (UHP) tubing systems for gases and chemicals. Orbital welding ensures:

  • Welds free from particulate contamination
  • Low surface roughness for laminar fluid flow
  • Compliance with SEMI F20 and ASTM standards

Determining when orbital welding is the right choice can be critical in regulated industries. Explore scenarios in When to Use Orbital Welding.

AMI Equipment Lineup

AMI provides a wide range of orbital welding equipment, including weld heads, power supplies, and accessories that are suitable for a variety of welding applications, for instance:

  • Model 317 power supply - Advanced orbital welding power supply designed for precision welding of tubes and thin-wall pipe.
  • Model 9 series weld heads - High-performance orbital TIG weld heads engineered for consistent, repeatable tube and pipe welds.
  • Model 2 weld head – Heavy-duty orbital weld head built for industrial applications requiring robust performance and durability.
  • Model 2Y7-CW Cooling Unit – Compact cooling system specifically designed to support small-bore ID orbital welding operations.

Orbital Welding Equipment & Process Control

Weld Heads

  • Closed-Head Systems: Provide a sealed chamber filled with inert gas, ensuring complete protection of the weld pool—ideal for stainless steel and titanium.
  • Open-Head Systems: Allow for flexibility in larger diameters and field applications but require precise shielding gas setups.

Power Supply and Controllers

Modern orbital systems use inverter-based power supplies capable of:

  • Pulse GTAW for improved heat input control
  • Multi-parameter programming (current slope, background current, arc gap)
  • Data logging and weld traceability for quality assurance audits

Process Variables Controlled

  • Arc Length Control (AVC): Maintains consistent arc gap via servo-driven actuators.
  • Travel Speed: Adjusted based on material thickness and diameter.
  • Oscillation: Adds lateral torch motion to increase bead width in multipass welds.
  • Wire Feed Systems: For automatic filler metal addition in thicker-walled joints.

Different orbital weld head designs are suited to different applications. Learn more about Open Weld Heads for Orbital Exterior Diameter Welding.

Advantages of Orbital Welding

  • Repeatability: Weld-to-weld uniformity across thousands of joints.
  • Productivity Gains: Faster cycle times compared to manual TIG, especially in high-volume tubing systems.
  • Defect Reduction: Minimal rework and higher first-pass yield rates.
  • Operator Safety: Reduced exposure to arc radiation, fumes, and confined space hazards.
  • Material Versatility: Applicable to exotic alloys (Hastelloy, Incoloy) and reactive metals (zirconium, titanium).
  • Regulatory Compliance: Meets FDA, ASME Section IX, ISO 9001, and EN 13445 standards.

Choosing between techniques can be daunting for new adopters. For a practical breakdown, read Applying Different Welding Techniques to Orbital Welding.

Future of Orbital Welding

The integration of orbital welding into smart manufacturing environments is rapidly accelerating, reshaping how industries approach precision welding. Emerging trends point toward even greater efficiency, quality, and adaptability. AI-powered welding will enable algorithms to dynamically adjust parameters in real time, ensuring optimal fusion with minimal human intervention.


Cobotic orbital welding, where collaborative robots position and operate weld heads, is opening new possibilities for flexible, mixed-production lines. At the same time, digital twin integration allows manufacturers to simulate weld outcomes before production, reducing costly trial runs and improving joint design. Finally, remote monitoring through cloud-based dashboards will give operators global oversight of welding operations, ensuring consistency, traceability, and responsiveness across multiple facilities. Together, these innovations signal a future where orbital welding is seamlessly embedded into Industry 4.0 ecosystems.

Conclusion

Orbital welding has evolved from a space-age innovation into a mainstream industrial necessity. Its ability to deliver sanitary, high-purity, and structurally sound welds has reshaped industries ranging from food processing to aerospace.

With ESAB’s expertise in welding automation, power supply design, and orbital welding systems, manufacturers can leverage technology that ensures compliance, reliability, and productivity. Whether your goal is to eliminate defects in pharmaceutical tubing or guarantee integrity in aerospace fuel lines, ESAB provides the tools and support to achieve excellence in orbital welding.
